Universal Testing Machine
Strength of Materials · Tensile Testing · Stress–Strain
See it
Inside the module.
Learning objectives
By the end of this module, students will be able to:
Understand the working of a Universal / tensile testing machine

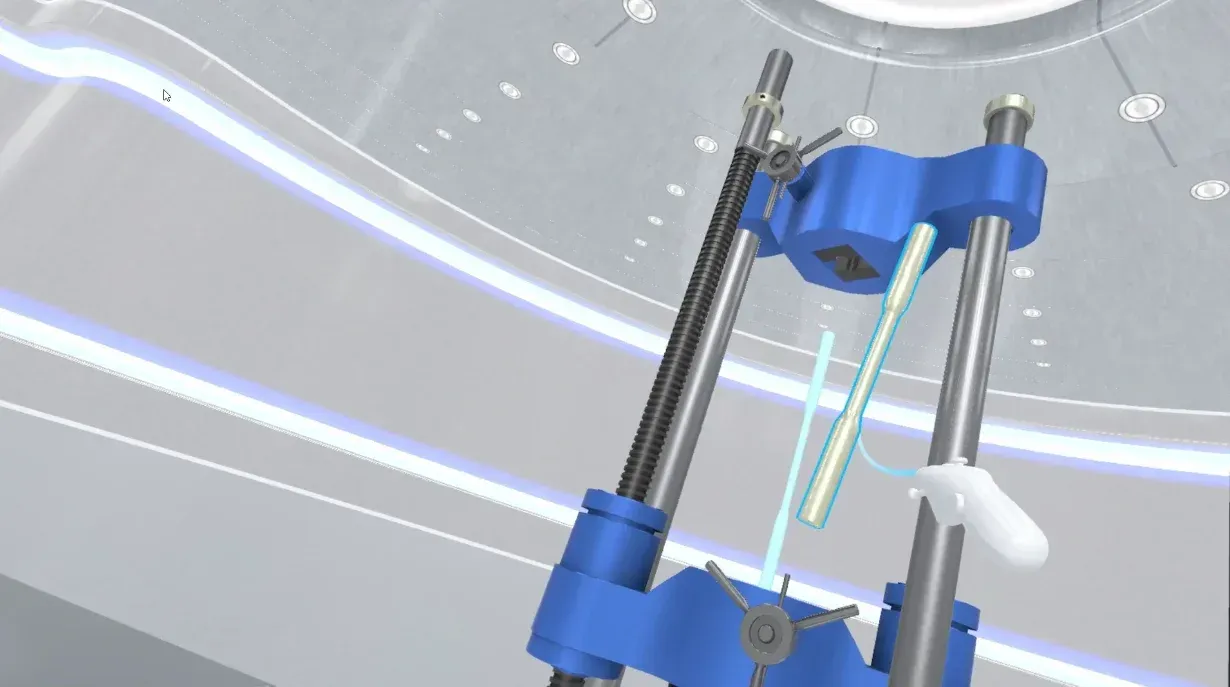

Prepare and mount a virtual test specimen in the grips
Select different engineering materials and compare their tensile behaviour
Observe load, elongation, stress, strain, yielding, necking, and fracture
Calculate and interpret Young's modulus, yield strength, ultimate tensile strength, and % elongation
Read stress–strain curves for ductile, brittle, metallic, and polymeric materials
"## A tensile test you can run as many times as you like.
A Universal Testing Machine (UTM) measures how materials behave under tensile or compressive load. In a tensile test a specimen is pulled until it deforms and fractures, revealing stiffness, strength, ductility, elasticity, plastic deformation, and the failure point.

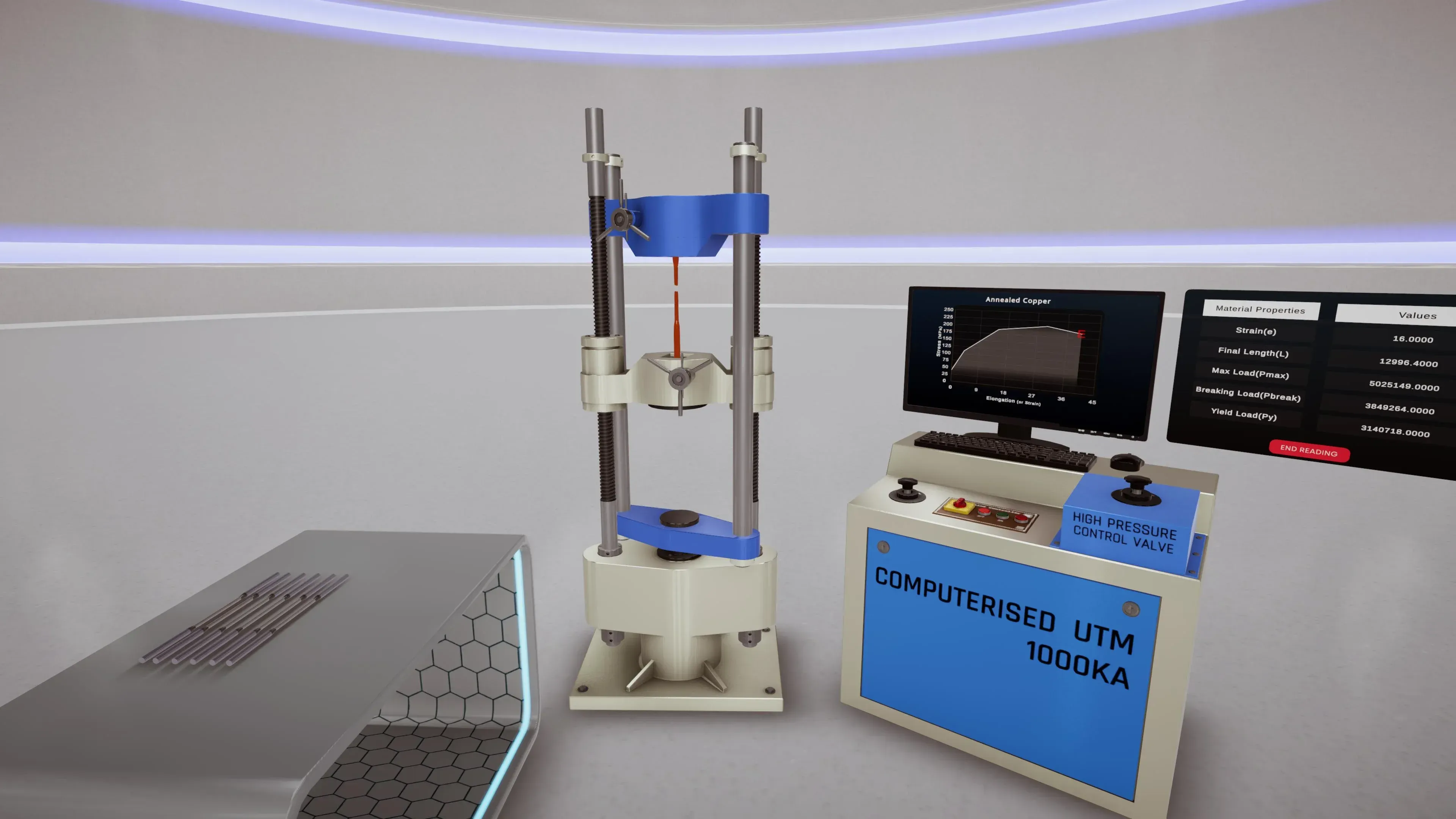

This is a fully dynamic experiment, not a fixed animation. Students enter a virtual materials lab, create a specimen, choose a material, position it in the grips, and start the test - watching it elongate in real time while the system calculates load, displacement, stress, and strain.
The backend uses real material datasheets and first-principles calculations, so different materials behave differently under the same conditions: ductile steel yields, strain-hardens, necks, and fractures, while a brittle material fails with little elongation. The module also recreates common lab errors - poor alignment, wrong grips, incorrect load-cell capacity, defective specimen edges - as safe, repeatable scenarios that consume no physical specimens.
The 7thi AI tutor sits alongside the whole experience, scaffolding the difficult parts and giving subject-aware answers in context. Built-in assessment lets faculty see, per student, who has grasped which concepts - without grading another paper."
Syllabus alignment
Where this module fits.
ABET (United States)
Supports ABET Student Outcome 1 - engineering problem-solving in material behaviour, stress–strain analysis, and mechanical properties - and Outcome 6 through experimentation, data interpretation, and curve analysis. Detailed mapping available on request.
AICTE / NEP 2020 (India)
Maps to Strength of Materials, Materials Science, Engineering Mechanics, and Manufacturing lab outcomes, supporting experiential, simulation-led, virtual-lab learning aligned with NEP 2020.
University syllabi
We map this module to your institution's own tensile-test experiments and material-testing lab manual - course outcomes, lab rubrics, and assessment - before deployment.
NBA (India)
Maps to Course Outcomes in Strength of Materials, Materials Science, Engineering Mechanics, and the Mechanical Testing Laboratory, contributing to POs around engineering knowledge, investigation, and modern tool usage (especially PO4 and PO5).
